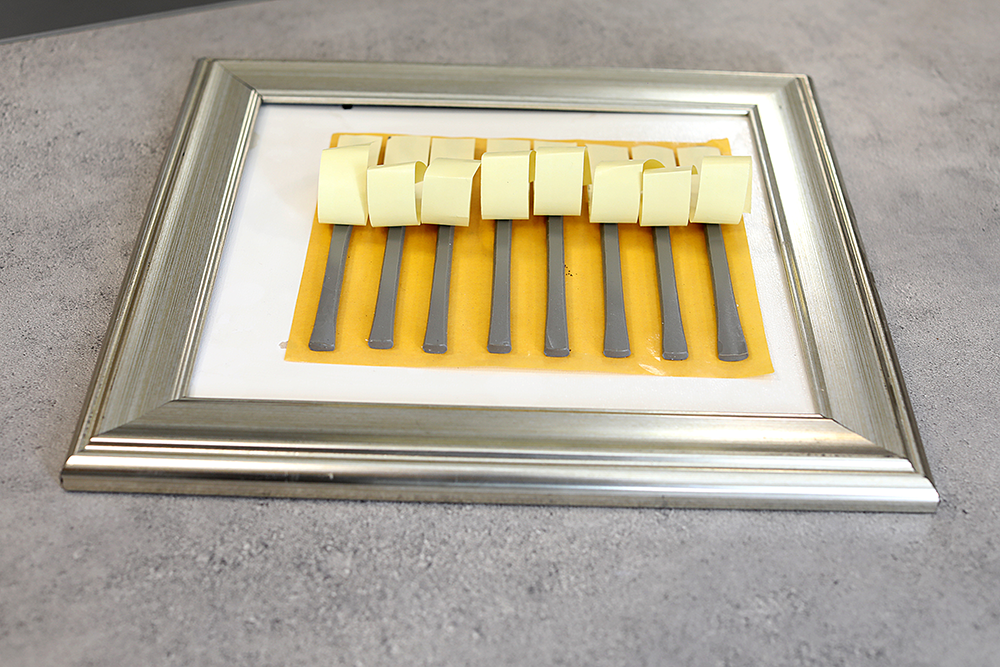

Foaming Butyl Sealers
This product is designed in two forms: tape and dimensional, with curing and foaming properties to cover gaps and engineering tolerances. This product, with its foaming ability of at least 50 to 200 percent, prevents the parts of the body where the collision of metal surfaces causes abnormal noise in the passenger compartment. Due to its improved mechanical and chemical properties during installation and after heat treatment, it has suitable properties, including adhesion to oily metal before and after heat treatment, suitable shear tensile strength and corrosion resistance, and control and reduction of distortion at the connection point.
Applications
This product has excellent adhesion to oily surfaces and is resistant to washing in the body shop and is used between the body metal and the metal retaining parts in the side doors, engine door, trunk door, and roof. Given the dimensions and shape designed for the parts, it is suitable for use at the installation site in the car body shop.
Key Features
Suitable connection to the grease sheet in the body hall and ease of assembly
Ability to bake and apply heat treatment with foaming ability of 90 to 180 percent
Shear strength appropriate to the place of application Various mechanical and chemical properties according to the place of application including shear and tensile strengths
Heat resistance up to 200 degrees Celsius
Resistance to slipping and creep after heat treatment
Technical specifications
This product is designed based on MS 373 – 06 and Peugeot – Citroen standard and accordingly has the following properties:
Technical characteristics | Standard MS 373-06 & Peugeot – Citroen |
|---|---|
Expansion Ratio (D45 1180) | 90 – 120 % |
Shear Strength (D41 1108) | Min.: 30 KPa |
Type of separation in shear strength (D41 1108) | Min.: 0.5 kg/0.15 cm2 |
Corrosion Resistance (D45 1148) | No Corrosion or Product Change |
Phosphate and ED tank contamination (D59 1456) | Max.: 1% V/V |
Stability on greasy sheet | No slipping or creeping |
