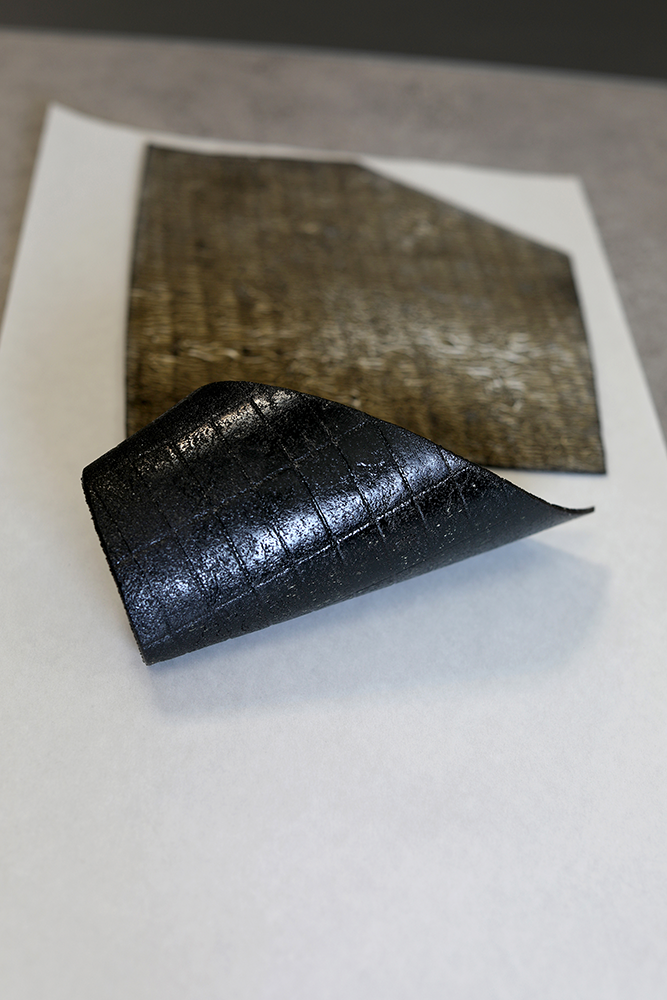

Magnetic and Magnetic Adhesive Bitumen Damping Pads
This product group is based on bitumen and ferromagnetic materials with properties that control vibrations entering the vibrating plates in different installation positions. It prevents the occurrence of abnormal noise due to the vibrating plates. Considering the occurrence of vibrations from the paths of the side doors, roof, engine door, trunk door and wheel housing, this product is designed in two types: magnetic and adhesive magnet with the degree of magnetism appropriate to the installation location. Magnetic insulators can be installed in positions with angles higher than 45 degrees to inverted positions, and after passing through heat treatment furnaces, they will have a proper connection with the body and have good anti-vibration properties with appropriate damping properties.
Application
Due to the installation of magnetic insulators at angles higher than 45 degrees to negative angles and inverted positions, it is installed on the body metal. This product group is mainly installed on the side doors, side panels, passenger compartment foot tray, roof and wheel housing to control vibrations.
Key features
Thermal resistance
Flame resistance and maximum burning rate of 100 mm/min
Magnetic properties and masses per unit area appropriate to the installation location
Vibration damping properties
Resistance to cryogenic shock
Technical specifications
This product is designed based on B65 4630 – A02 standard and accordingly has the following properties:
Technical characteristics | Standard B65 4630 – A02 |
|---|---|
Behavior To Heat | No slipping or creeping And separation |
Shear tensile strength | Min.: 0.2 MPa |
Magnetic property of Gauss meter | Min.: 150 mT |
Magnetic power | Min.: 300 RPM |
Combustibility | Max.: 100 mm / min |
Impact behavior as a function at -30°c | No damage (no separation or falling off) |
Vibration damping power | Min.: 14.4 dB/sec |
Adhesion strength ( self-Adhesive parts) | Min.: 0.2 dN/cm |
